For bracing of the self-supporting GURO-special cable YTBKW, but also for all Self-supporting Suspension Wire.
With AKL-tension clamps can be braced easily and reliably self-supporting suspension wires on masts and walls of buildings.

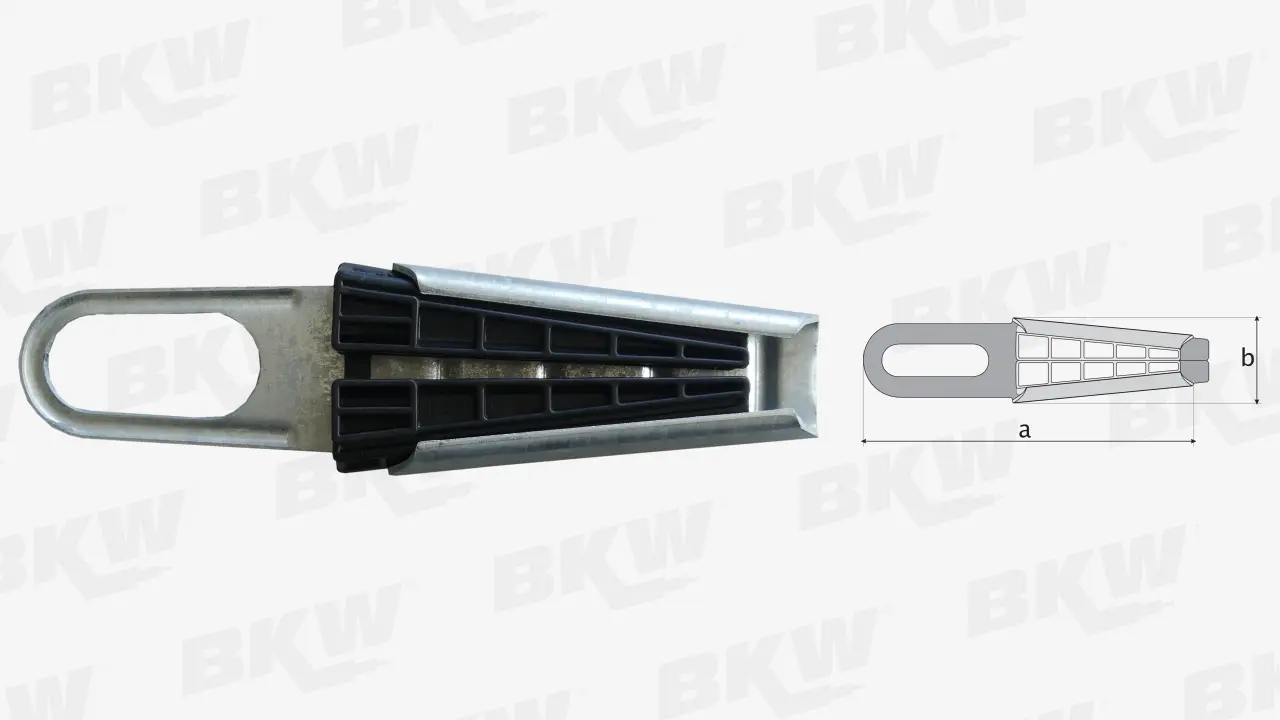

The AKL tension clamps consists of a zinc-fired steel housing in this are two conical clamp jaws inset of polyamide.
The clamp jaws are moved by hand against the inserted cable shoved and clamp at tensile load evenly and safely, they prevent a possible slipping on the occurrence of additional forces (wind and ice loads).
| Article Nr. | Designation | Clamping range (mm - mm) | YTBKW (mm²) | Dimensions a (mm) | Dimensions b (mm) |
|---|---|---|---|---|---|
| 18001 | AKL 1 | 5,5 - 9,5 | 3 x 1,5 re | 190 | 48 |
| 18002 | AKL 2 | 8,5 - 13,5 | 3 x 2,5 re | 250 | 67 |
| 4 x 1,5 re | 250 | 67 | |||
| 4 x 2,5 re | 250 | 67 | |||
| 18003 | AKL 3 | 12,5 - 17,5 | 4 x 4,0 re | 300 | 80 |
| 4 x 6,0 re | 300 | 80 | |||
| 18004 | AKL 4 | 16,5 - 24,0 | 3 x 10 rm | 420 | 116 |
| 18005 | AKL 5 | 22,5 - 32,0 | 5 x 16 rm | 540 | 150 |
Self-supporting suspension cables for connecting lighting poles and cables for wiring lights.
For self-supporting suspension with end grips e.g. between street light beam up to 50 meters.
